This is a multi-use rotating joints serie. A pair of ball bearings assures a perfect alignement of seal faces with a low torque value of joint itself even in heavy working conditions. The balanced seal allows to keep the contacting faces under a nearly constant load, indipendently from the pressure of flow media so reducing the friction and the wear. Standard equipment provides for rotating seal of syntethic Carbon Graphite and for stationary seal of sinterized Silicon Carbide both interchangeable.Working with water, tests have shown this combination capable of lasting up many times longer than Carbon Graphite to Ceramic under the same working conditions. Where  a very wear resistance seal is request we can supply a combination SiC/SiC. The quick and easy replacement of both the Floating Seal and the Rotor Seal with the high wear resistance and long life make this serie the very economical solution to the problem of fluid transfer  from static to rotating parts

GR..    -  ONE WAY ROTATING JOINTS







GR 8 1/4 BSP
GR 10 1/4 BSP
GR 15 3/8 BSP
GR 20 1/2 BSP
GR 25 3/4 BSP



GR..F  TWO WAYS ROTATING JOINTS - FIXED SIPHON

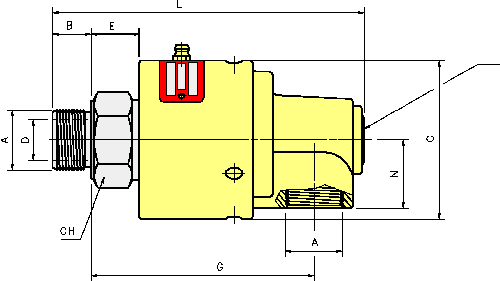

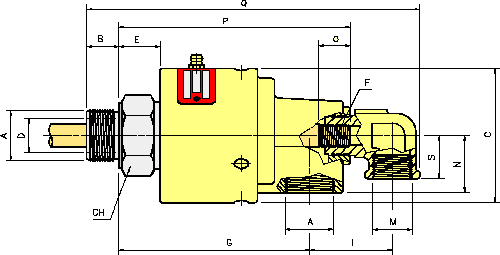

TYPE A

BSP

B C D E F

BSP

G I

±1

L M

BSP

N O P Q

±1

S CH WEIGHT

Kg

PDF

RH

PDF

LH

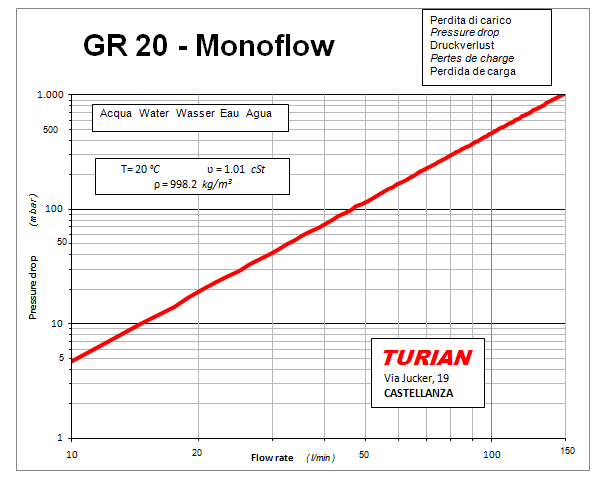

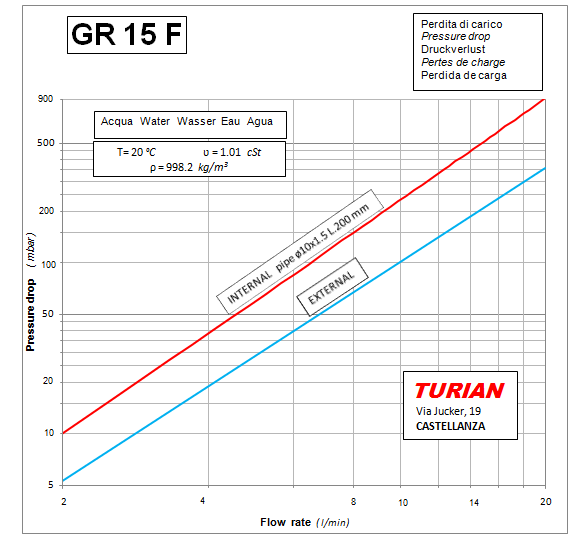

ΔP

mbar

V

m/s

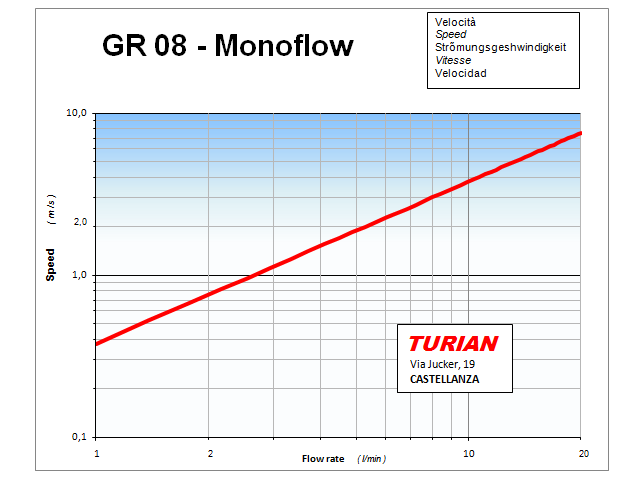

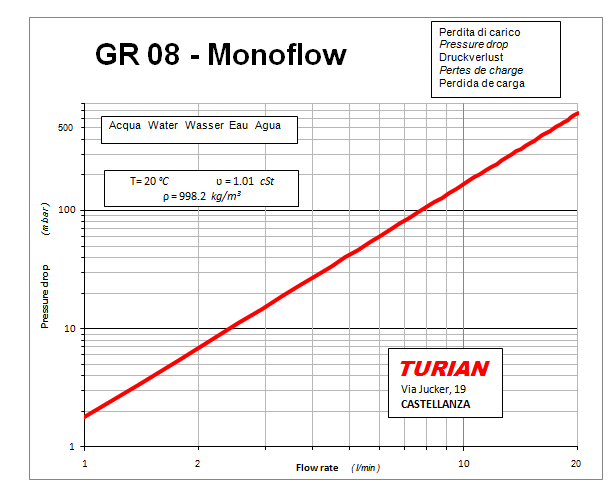

GR  8  1/4 10 47 7.5 13 - 66.5 - 93 - 20 - - - - 24 0.58 gr08 gr08

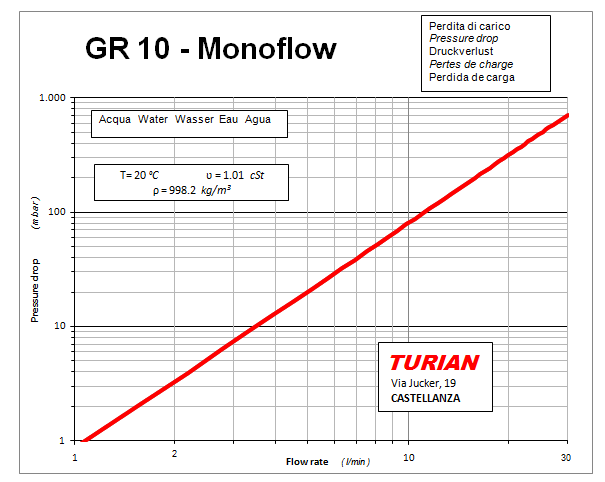

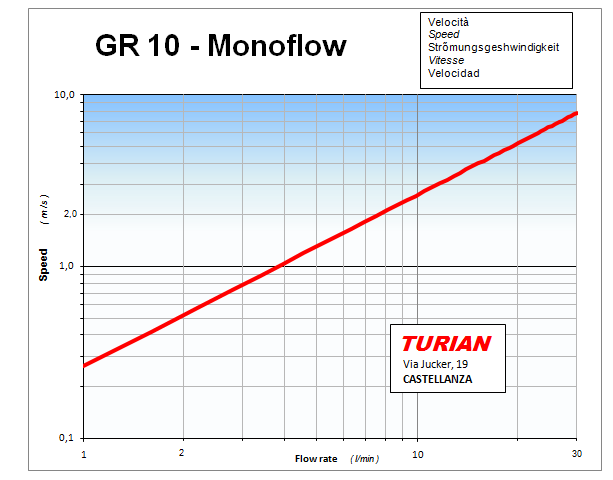

GR 10  3/8 12 47 9 13 - 66.5 - 96 - 20 - - - - 24 0.58 gr10 gr10

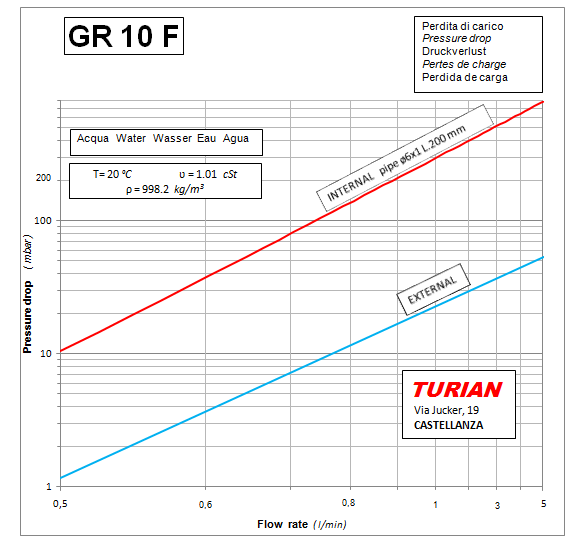

GR 10 F  3/8 12 47 9 13 M6x1 66.5 33 -  1/4 20 12 84 124 20 24 0.7 gr10f gr10f

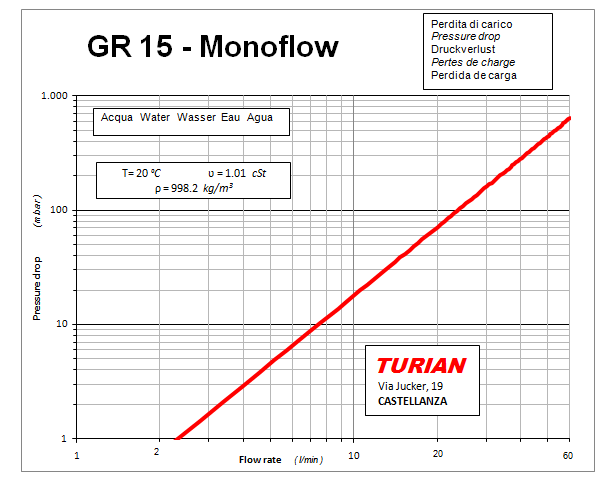

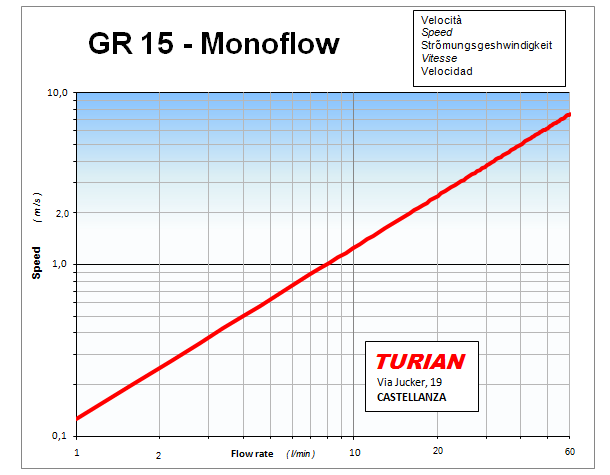

GR 15  1/2 15 60 13 18 - 89 - 123 - 26 - - - - 32 1.17 gr15 gr15
GR 15 F  1/2 15 60 13 18  1/8 89 35 -  3/8 26 18 108 150 20 32 1.28 gr15f gr15f

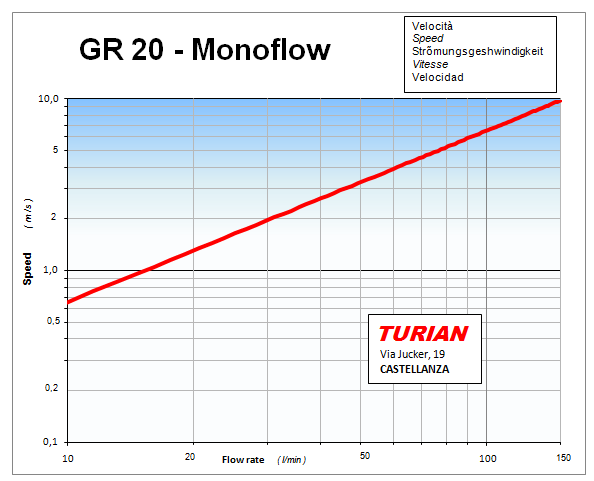

GR 20  3/4 15 70 18 21 - 100 - 137 - 30 - - - - 36 1.7 gr20 gr20

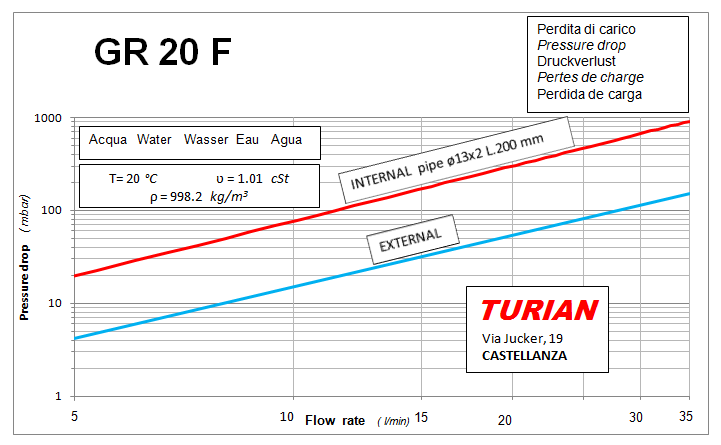

GR 20 F  3/4 15 70 18 21  1/4 100 39 -  3/8 30 18 124 163 20 36 1.8 gr20f gr420f

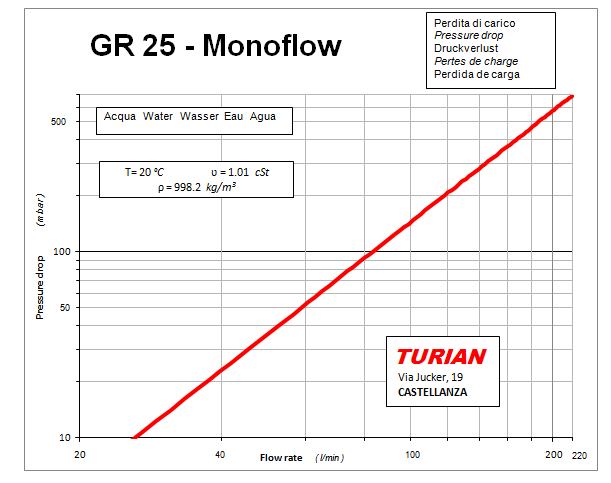

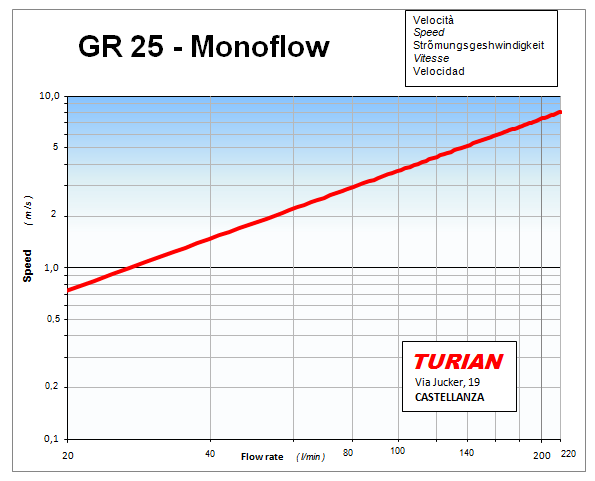

GR 25 1” 20 84 24 21.5 - 109 - 156 - 36 - - -   46 2.5 gr25 gr25

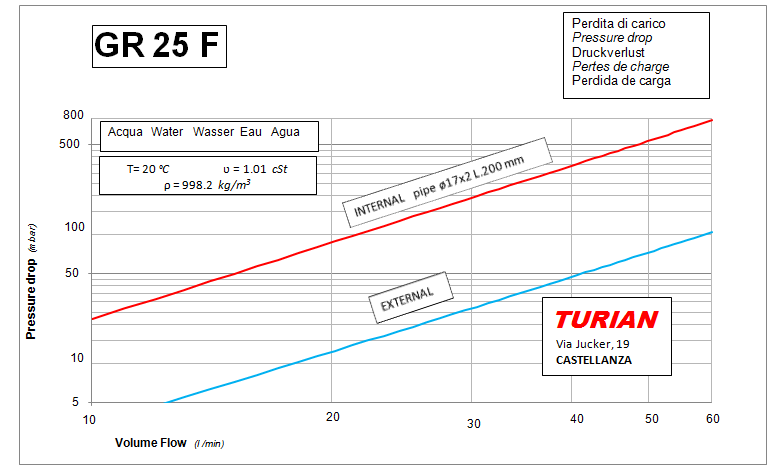

GR 25 F 1” 20 84 24 21.5  3/8 109 55 -  1/2 36 20 142 198 23 46 2.6 gr25f gr25f
